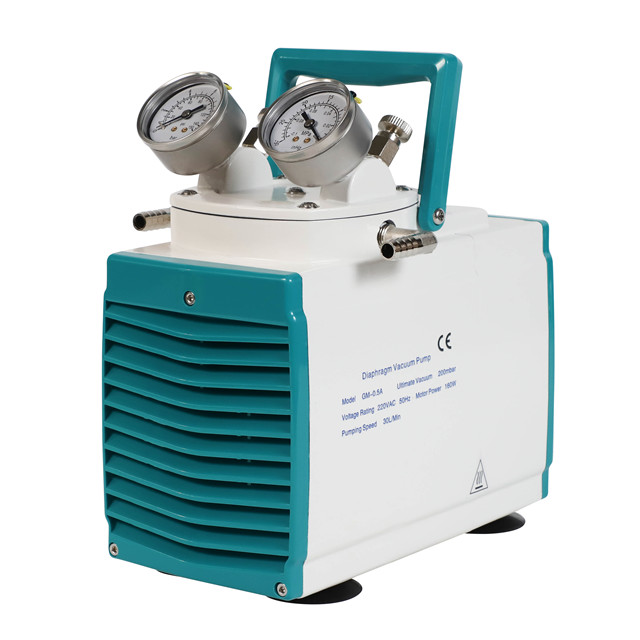

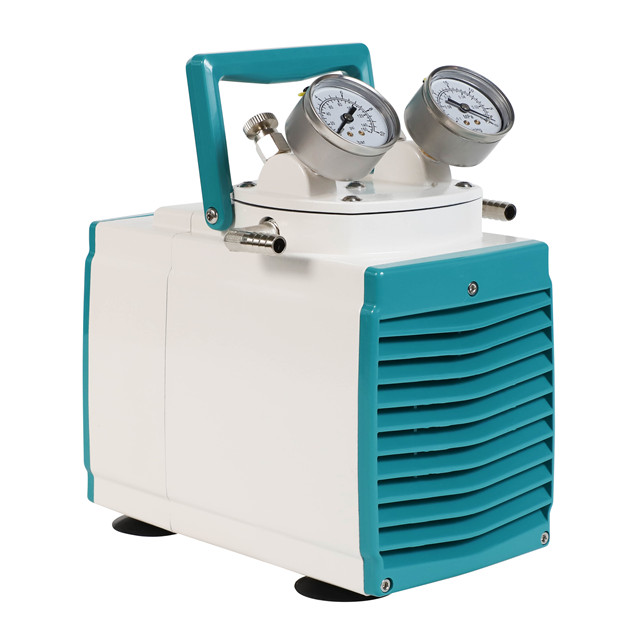

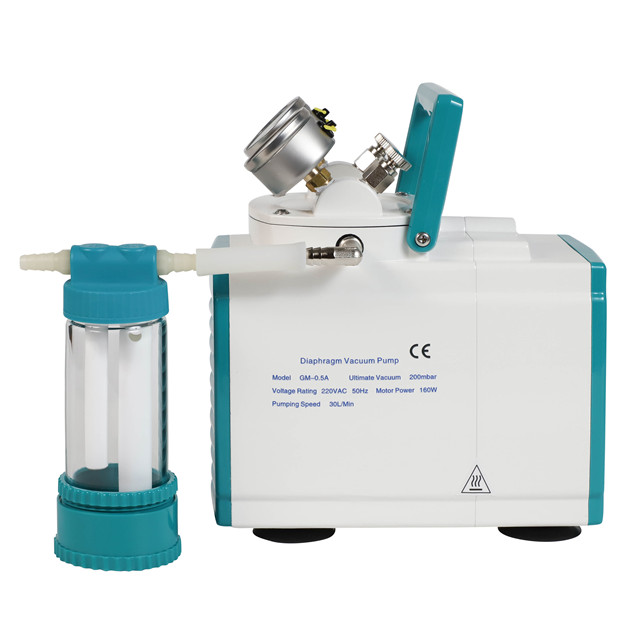

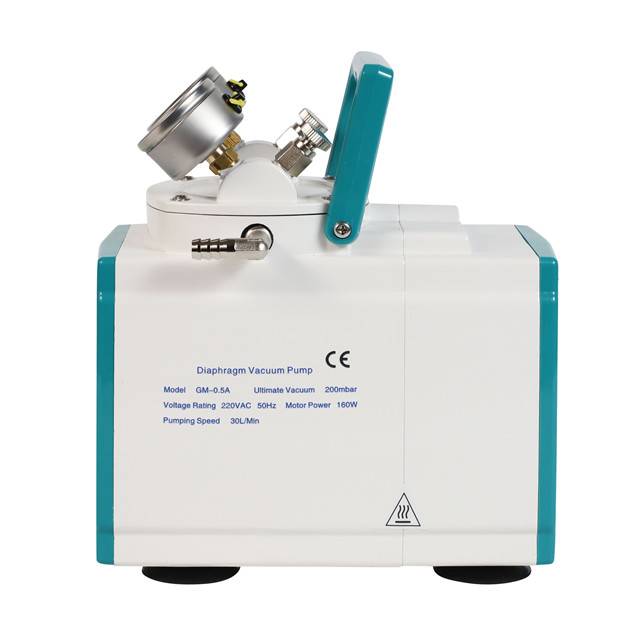

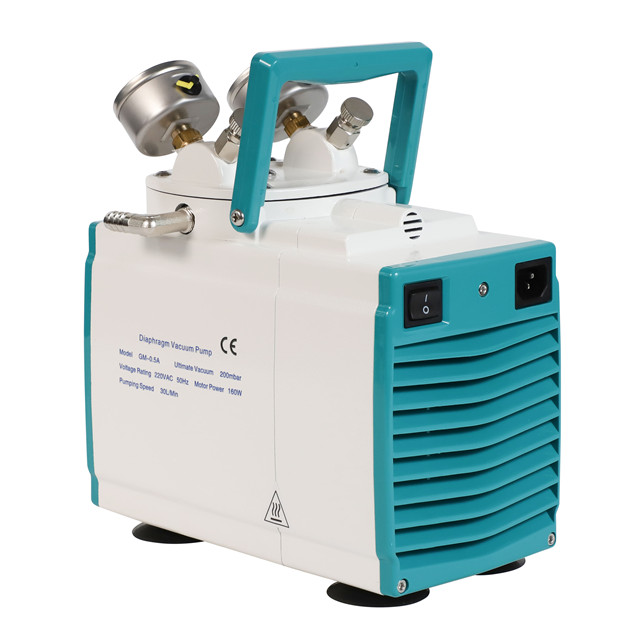

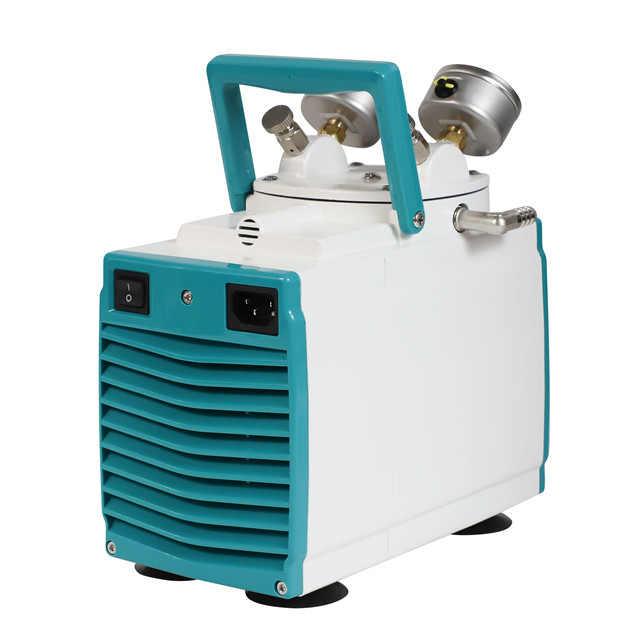

Anticorrosive Diaphragm Vacuum Pump (GM-0.5A)
Jinteng Series Anticorrosive pump has complete ability of resistance to chemical corrosion .
It is through Teflon treatment to the parts which contact with the gas . It’ s suitable for the corrosive chemical, pharmaceutical , petrochemical gases etc. It’ s used for vacuum filtration, vacuum distillation, rotary evaporation, vacuum concentration, centrifugal acceleration, solid phase extraction etc. It’ s a very high cost performance product with quality reliability, unique structural design to meet the various needs of the laboratory.
TECHNICAL SPECIFICATION
• Speed of evacuation : 30 L/Min
• Ultimate pressure vacuum : ≥ 0.08 Mpa(200Mbar)
• Voltage : 110V/220V/230V/240V
• Motor power : 160W
• Pressure : ≥ 30 Psi
• Inlet (mm) : Ø 6
• Outlet (mm) : Ø 6
• Temperature of working environment ( ℃ ) : 7 - 40
• Function : Vacuum & Pressure
• Pumphead : 1
• Temp of the body ( ℃ ) : ≤55
• Dimensions ( LXBXH ) (mm) : 210 x 160 x 235
• Noiselevel ( D B ) : ＜60
• Weight ( kg ) : 8
• Diaphragm : PTFE Coated
FEATURES:
• Corrosion resistance, able to tolerance almos tall strong acid (including aqua regia), strong alkali, strong oxidizer, reductant, and variety of organic solvents.
• Withstand high and low temperatures, can be used in temperature of - 190℃ to 260℃.
• Non-stick surface, most solid material and impurity particles can not conglutinate on the surface.
APPLICATION:
Vacuum adsorption
Solvent filtration
Vacuum distillation
Vacuum drying
Compressing and converting gas
SPE (Solid phase extraction)
Deaeration,etc
Technological Competitiveness:
The internal components of Jinteng Diaphragm Vacuum Pump series are produced by numerical control equipments which are imported from Germany DMG and Korea kia.This is our unique technology competitiveness that all the same type of products made by other China Company could not match.With the good appearance,stable quality,excellent performance of our products,and high quality service of our company,we believe that jinteng’s diaphragm vacuum pump is the best choice for your laboratory.
